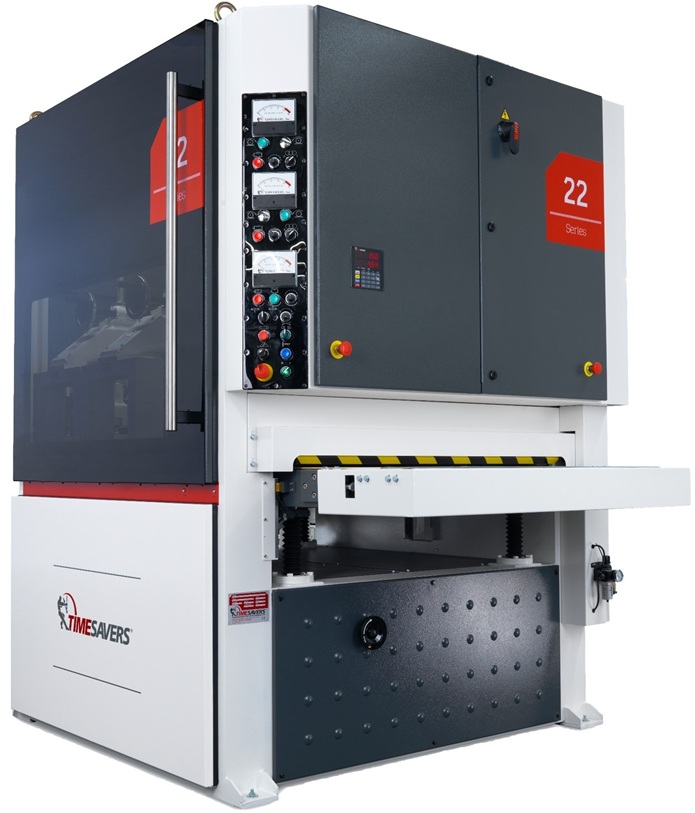

THE 22 SERIES FOR DRY DEBURRING AND PERFECT FINISHING OR HEAVY SLAG REMOVAL

The 22 series is suitable for the dry finishing and deburring of metal. This versatile machine is available in three nominal widths:900 mm, 1050 mm and 1280 mm. ln total, three attachments can be used with the machine for several applications.

Reduction of costs and an increase in efficiency

By combining an abrasive belt and a brush, products can be deburred and rounded in one go.

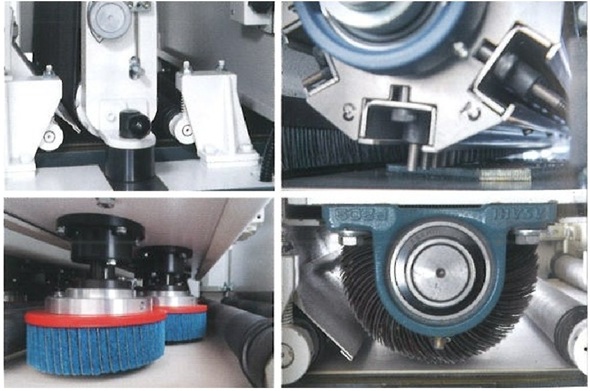

The machine is produced for deburring laser cut metal and edge rounding of sides and all of this while incurring very low costs. The Multi Disc head which consists out of 6 deburring brushes which rotate against each other can create a large rounding and nice finish.

Effective removal of heavy slag

The Hammerhead is specially developed for fast removal of heavy slag on plasma and flame cut steel. As an option, the machine can have a wide belt grinding head behind the Hammerhead for edge breaking and further deburring.

STANDARD VERSION:

• Table mounted on 4 synchronous spindles.
• Digital thickness adjustment and display in mm.
• Frequency controlled transport motor, 2,5 - 14 m/min and 0,7 - 7 m/min for WBB.
• Standard width of workpiece : 900mm, 1050mm & 1280mm
• Automatic table height adjustment 1 - 125 mm.
• Electronic oscillation.
• Dust extraction hoods and connections on top.
• CE-certified.

APPLICATIONS AND BENEFITS:

• Removal of vertical burrs from punched, laser and waterjet-cut parts.
• Stainless steel, steel, aluminium, copper, etc.
• Deburring and surface finishing in one throughput when using multiple heads.
• Edge breaking by means of cylindrical Nylon web brushes (B), flap brushes (B) or small brushes (MD).
• Finishing grinding / brushing.
• Very low operating costs and high production capacity.

Contact us for more information!
