42 RB SERIES FOR ULTIMATE DEBURRING, FINISHING, EDGE ROUNDING, LASER OXIDE AND HEAVY SLAG REMOVAL

Discover the ultimate machine for uniform deburring, edge rounding and finishing of your product(s). Read everything about Timesavers'42 Rotating Brush (RB) series below.

This is the most popular and award-winning Timesavers machine.

This machine has been developed for people who want only the best

The 42 RB series offers the solution for manufacturers who supply premium quality products. This top quality is achieved through a multi-rotating brush machine with eight abrasive flap brushes that deburr uniformly and round the edges of the metal perfectly. This makes it possible to achieve a radius of 2 mm on mild steel and even more on softer material such as aluminium.

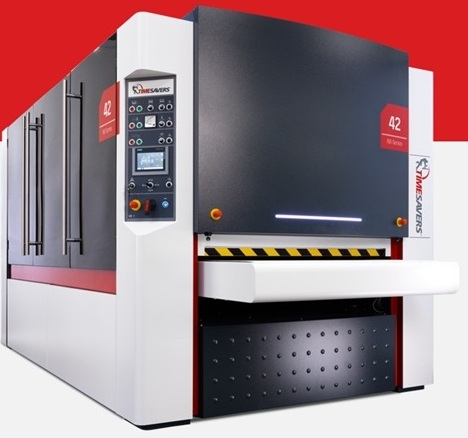

The Timesavers Rotating Brush Machine

This deburring machine can also be provided with one or more abrasive belt heads and therefore it will perfectly remove very large burrs and/or it will guarantee the perfect finish. The machine ls suitable for machining punched, laser-cut and plasma-cut part and even 3D and milled parts with deep pockets. With the use of a standard vacuum table with automatic vacuum control also small parts (from 50 mm) up to large parts, up to 1600 mm can be machined. The materials that can be machined include stainless steel, aluminium, zincor, zinc and laser film products. Available in this machine segment is the use of Cobots and integration in an lndustry 4.0 / Smart lndustry software platform.

STANDARD VERSION:

• Ergonomic positioned and user-friendly control panel (located at 45'for a good overview of the treatment process).
• Standard width of workpiece : 1350mm and 1600mm
• Motorised adjustable table opening from 0 - 100 mm.

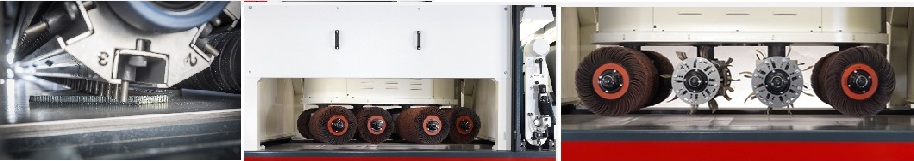

• Rotating brush carousel equipped with 4 counterclockwise and 4 clockwise rotating brushes.
• Frequency-controlled conveyor belt with an adjustable feed speed of 0,2 - 8 m/min.
• Window doors, illuminated interior and optional camera's for process observation.
• Brushes with an extremely long service life of up to 3000 hours.
• LED bars on the input and output to indicate machine status.
• Available with 1, 2, 3 or 4 heads.
• Vacuum table with an automatic cleaning cycle.
• Quick change system for brushes and belts.
• CE-certified.

APPLICATIONS AND BENEFITS:

• The brush contact distance of 42 RB 1350: 1670mm - 42 RB 1600: 1750mm.
• The 8 brushes have a total of 46 m² (1 350) - 53 m², (1600) of abrasive material.
• Processing of mixed materials with optional wet dust extraction.
• Treatment of small parts (50 x 50 mm) possible with the standard vacuum table.
• The removal of burrs due to laser, plasma, water jet cut and embossed parts in one go.
• Flat, formed and 3D parts with pockets/protrusions.
• Preliminary removal of large burrs and finishing of surfaces.
• Stainless steel, mild steel, aluminium, copper, etc.
• Deburring Zintec, galvanised and plated material.
• Use of Cobots integration in an lndustry 4.0/Smart industry software platform.
